Delta ASIC

3 Track ASIC - High Noise Immunity - Data buffer with Shift-Out

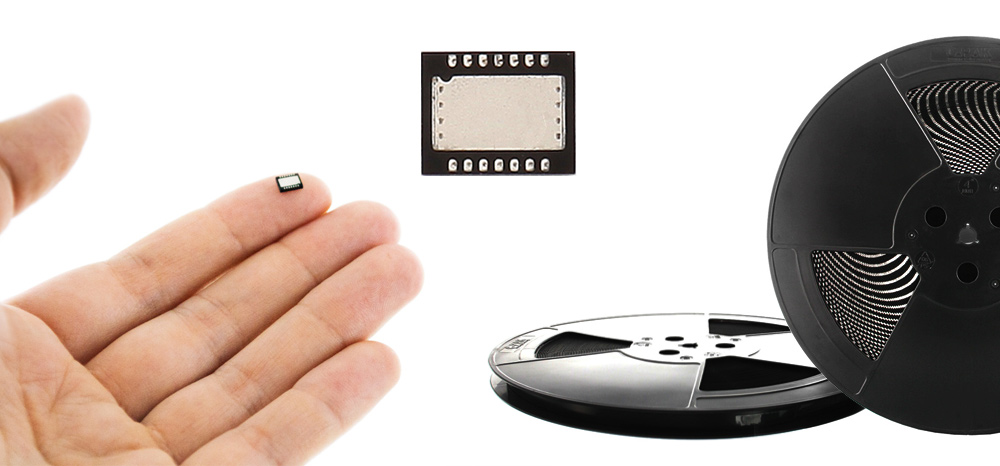

The triple track Delta ASIC blends over 30 years of magnetic experience with state-of-the-art electronics to provide a single-chip solution to retrieving data from a magnetic card.

The 3-volt Delta ASIC with Shift-Out is a fully integrated magnetic stripe decoder offering superior data recovery from all types of magnetic cards. It buffers the entire track data, thus reducing the amount of memory required for the microprocessor.

The compact (4mm x 5mm) QFN package minimises PCB space as well as the number of external components needed - only a decoupling capacitor is required.

AGC (Automatic Gain Control) means the Delta ASIC can read cards from 30% to 200% of ISO standards. This feature coupled with high noise immunity and high performance decoding also allows the reading of badly damaged cards.

Delta ASIC -
Low power, 3 track ASIC with Automatic Gain Control high noise immunity and on-board memory.

Packed with features
Low power, 3 track ASIC with Automatic Gain Control high noise immunity and on-board memory.

Delta ASIC -

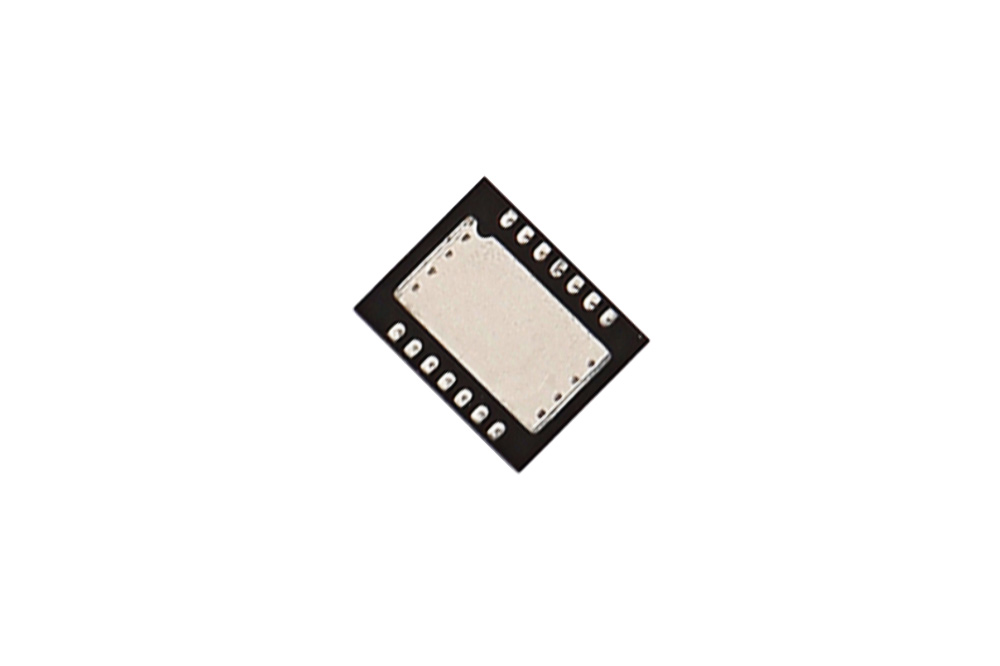

4 mm x 5mm 14 pin MLF™ surface mount package.

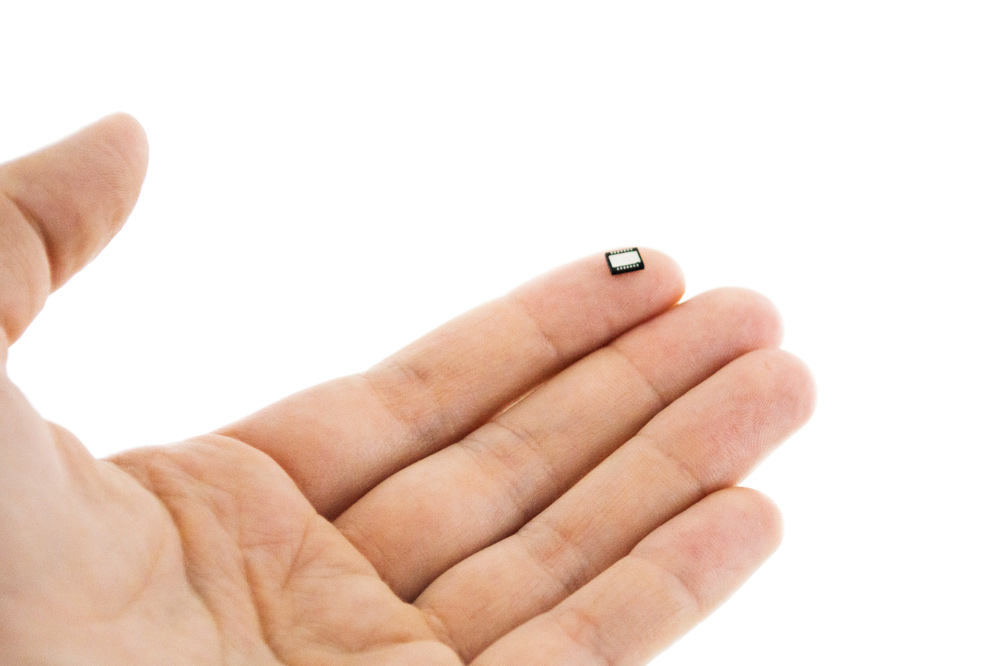

Compact design
4 mm x 5mm 14 pin MLF™ surface mount package.

Delta ASIC -
Comes in tubes of 75 or tape reels of 4000.

Flexible
Comes in tubes of 75 or tape reels of 4000.

Delta ASIC -

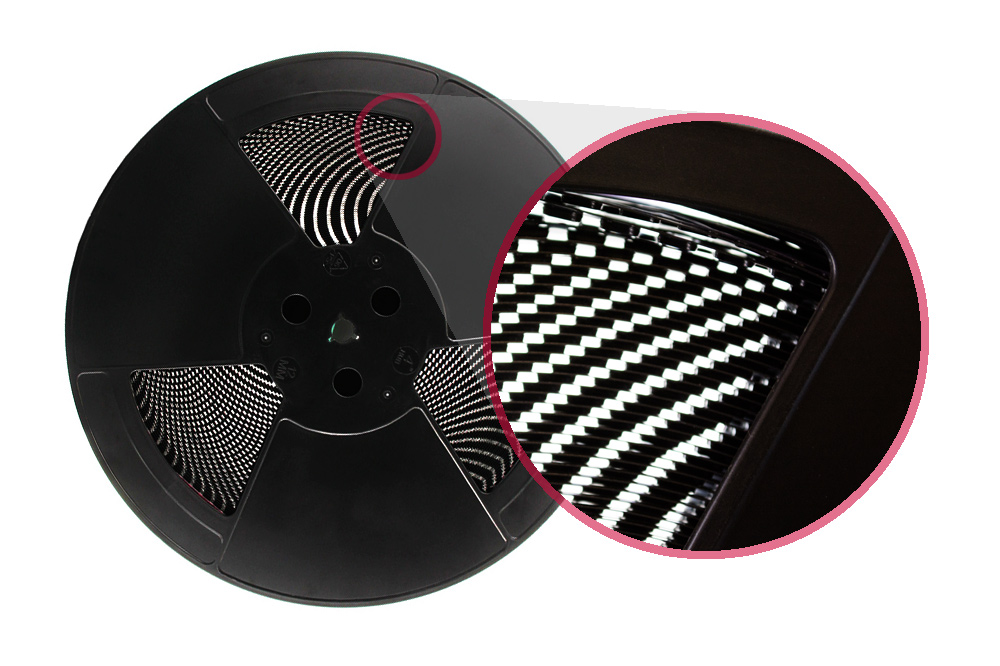

4000 card reading ASICs on a single reel for automated product assembly.

On a Reel
4000 card reading ASICs on a single reel for automated product assembly.

Product details

Low Power
3 tracks
On board memory (shift-out interface)
AGC (Automatic Gain Control) -
reads cards from 30% - 200% of ISO standards
Compact design - 4 mm x 5mm
14 pin MLF™ surface mount package
Minimal external components -
only a decoupling capacitor is required.
Only 2 signals, DATA and STROBE to
connect to your micro-controller
Data buffer with Shift-Out -
allows full card data to be locally stored on ASIC.
High noise immunity
High performance decoding - reads badly damaged cards
